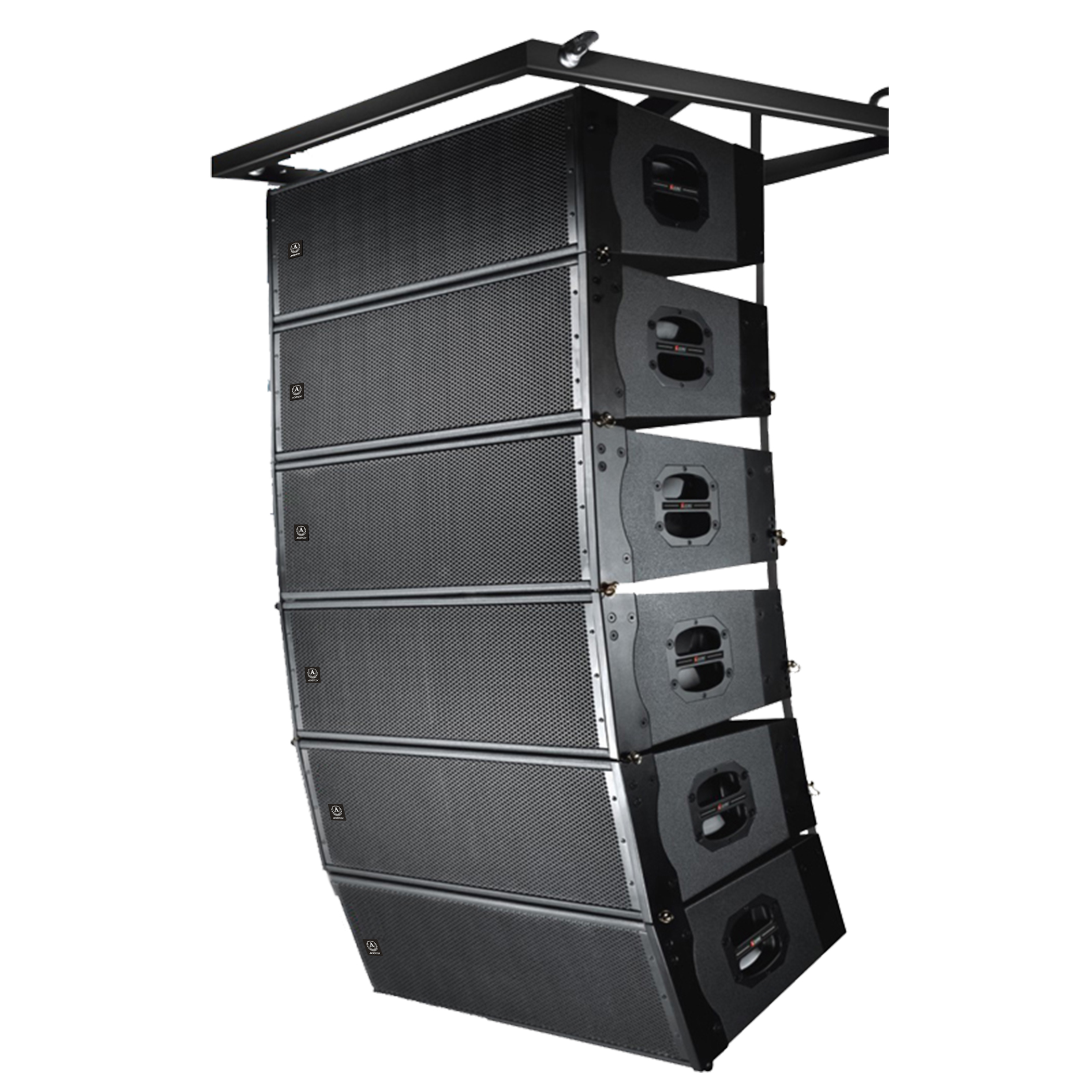

The entire system adopts two channels and three units, with an external frequency division design, two 10 inch mid to low frequency speakers, and one 3-inch tweeter driver. Combined with customized horn, it can effectively control the directionality of high frequencies. Within a horizontal range of 120 degrees, a uniform high frequency response will be obtained. According to the needs of on-site sound reinforcement, while also meeting the effective attenuation within the verticality range. Ensure that there is no interference between multiple speaker systems when working simultaneously, meeting the requirements of range amplification.

parameter

Rated power: 700W
Peak power: 1600W
Low frequency: 10 "x2
High frequency: 3 "x1
Frequency response: 55Hz~20kHz (± 3dB)
Sensitivity: 102dB
Rated impedance: 8 Ω
Maximum sound pressure: 1136dB
Product size: 300X880X500mm
Net weight: 42kg/piece
